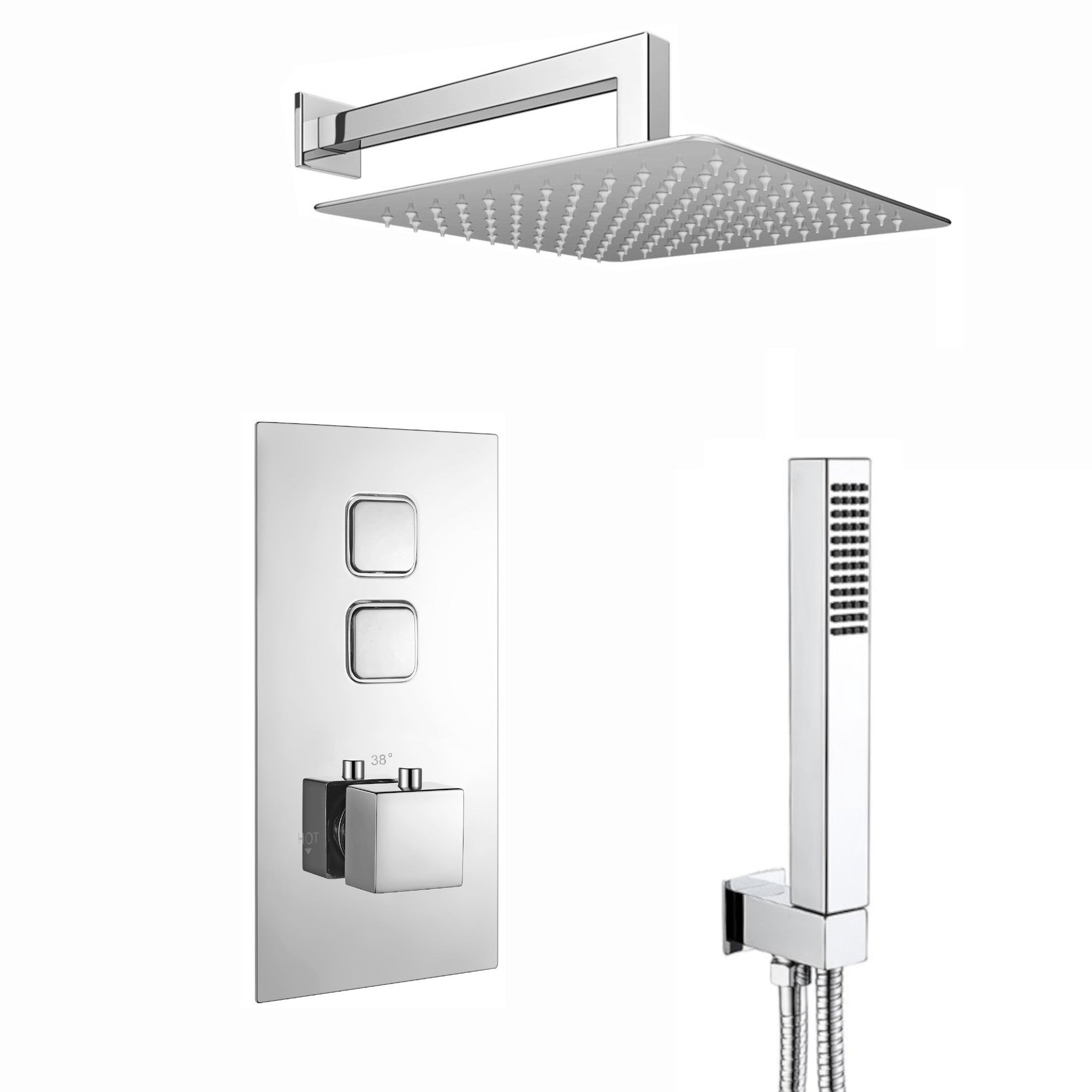

Spello Square Thermostatic Concealed Shower Set with Wall Mounted Shower & Handset Kit - Chrome

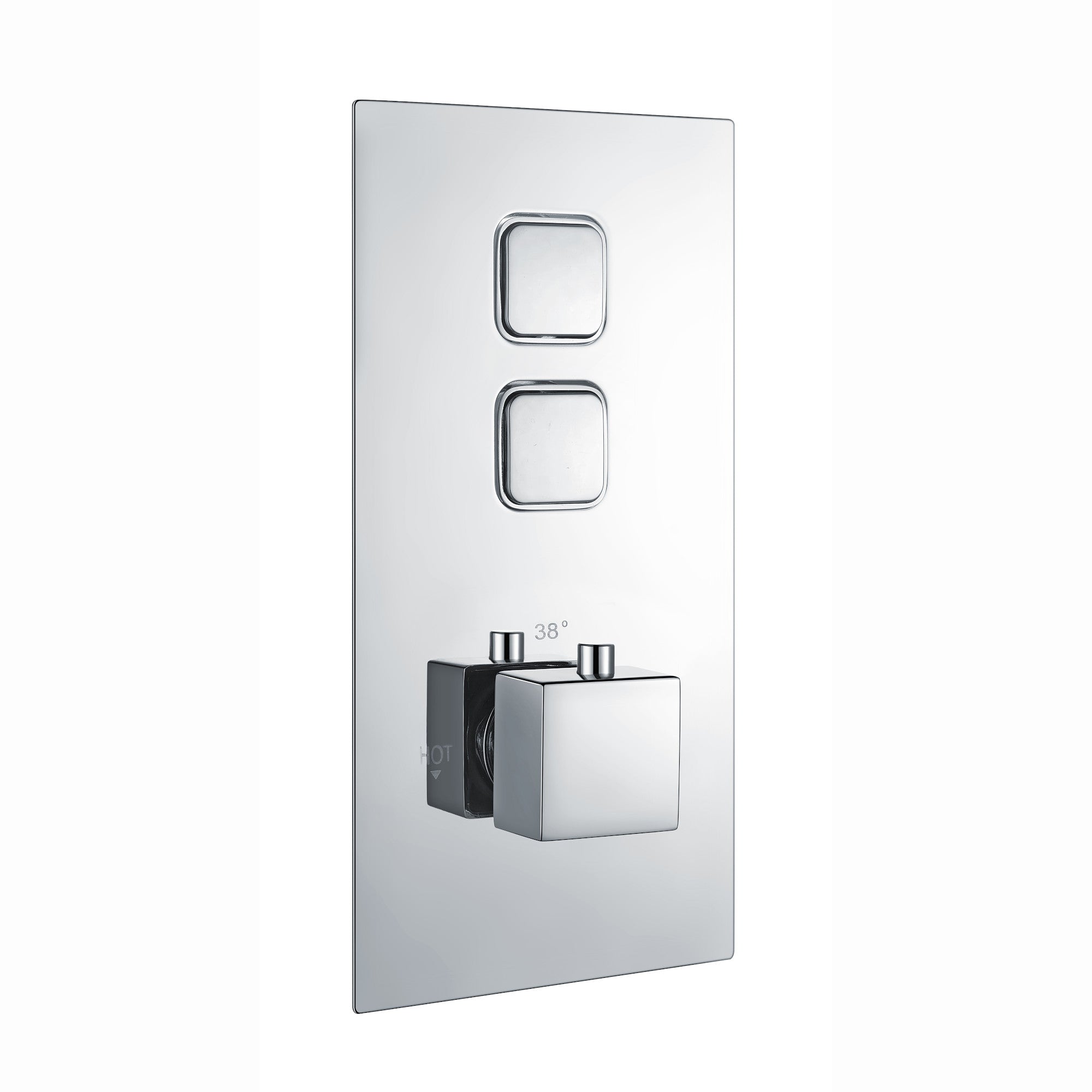

SPELLO CONCEALED PUSH BUTTON THERMOSTATIC SHOWER MIXER VALVE

Single cast body, high-grade brass is featured in this premium quality valve. It is designed in a way that if maintenance is required whole valve does not require re-plumbing. Built-in anti-scald device means no more fluctuating water temperatures while showering.

• 3/4" hot/cold inlets with built-in non-return valves to prevent backflow

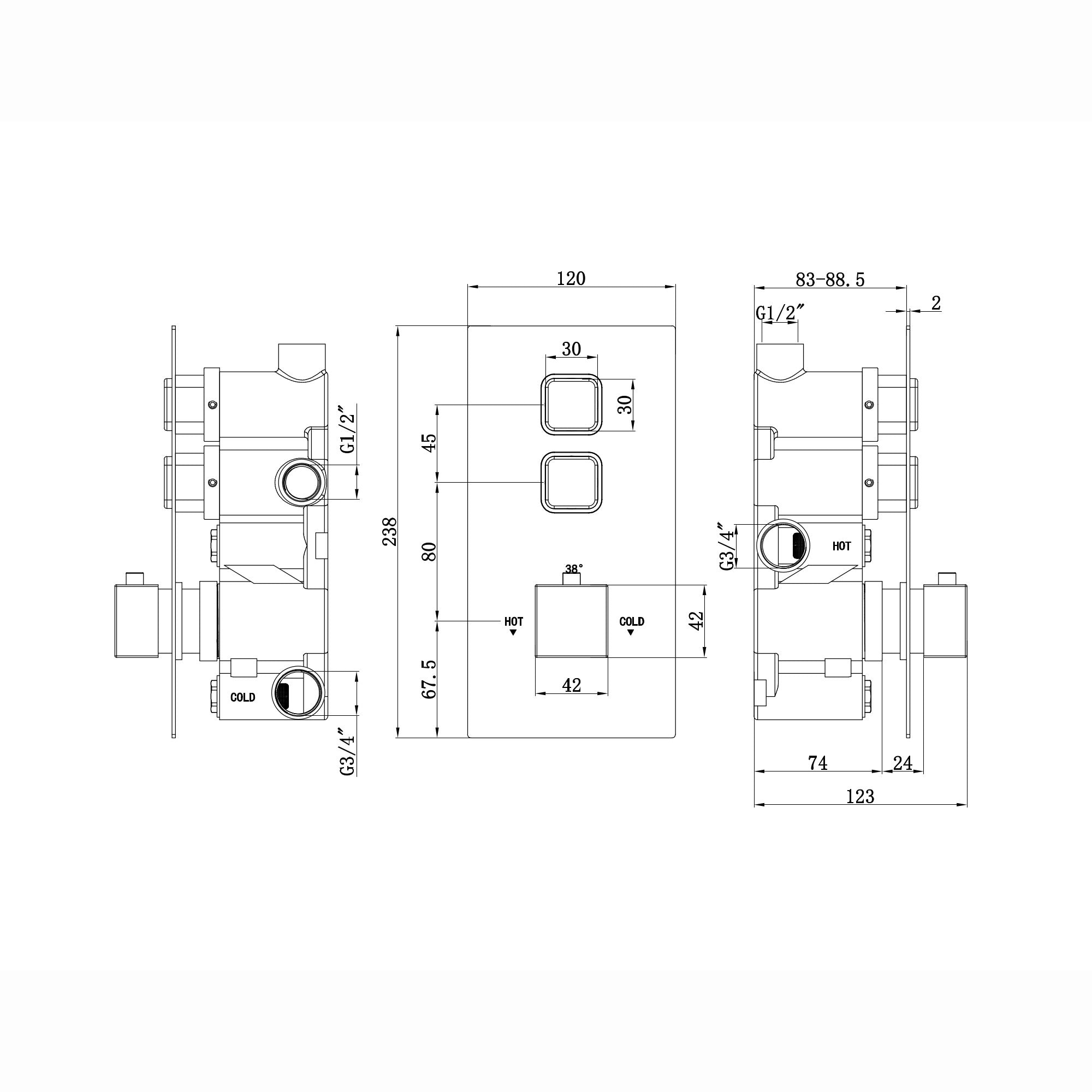

• For more dimensions please see technical drawing
• Push buttons 1, 2: on/off for outlets 1, 2
• Bottom dial: temperature control

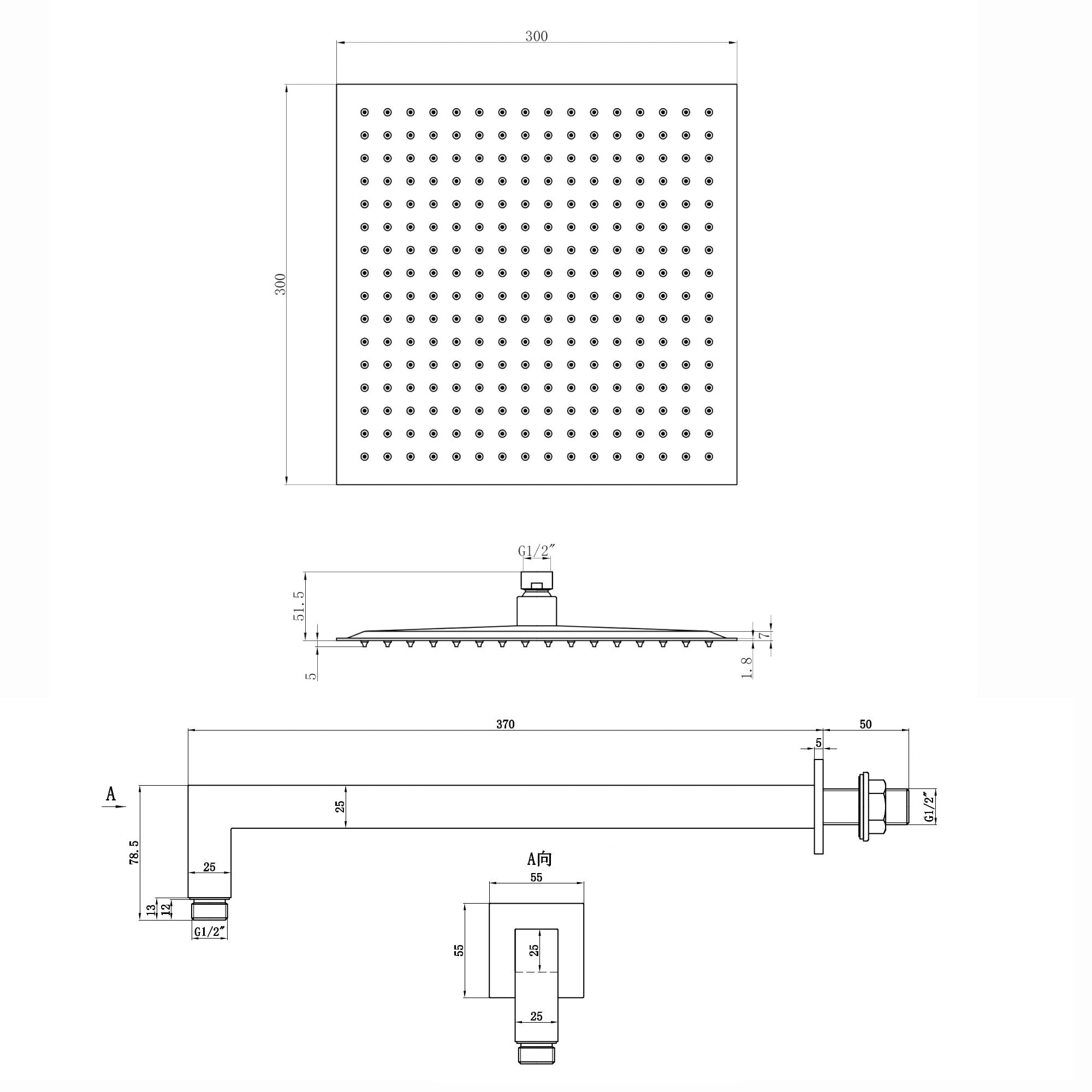

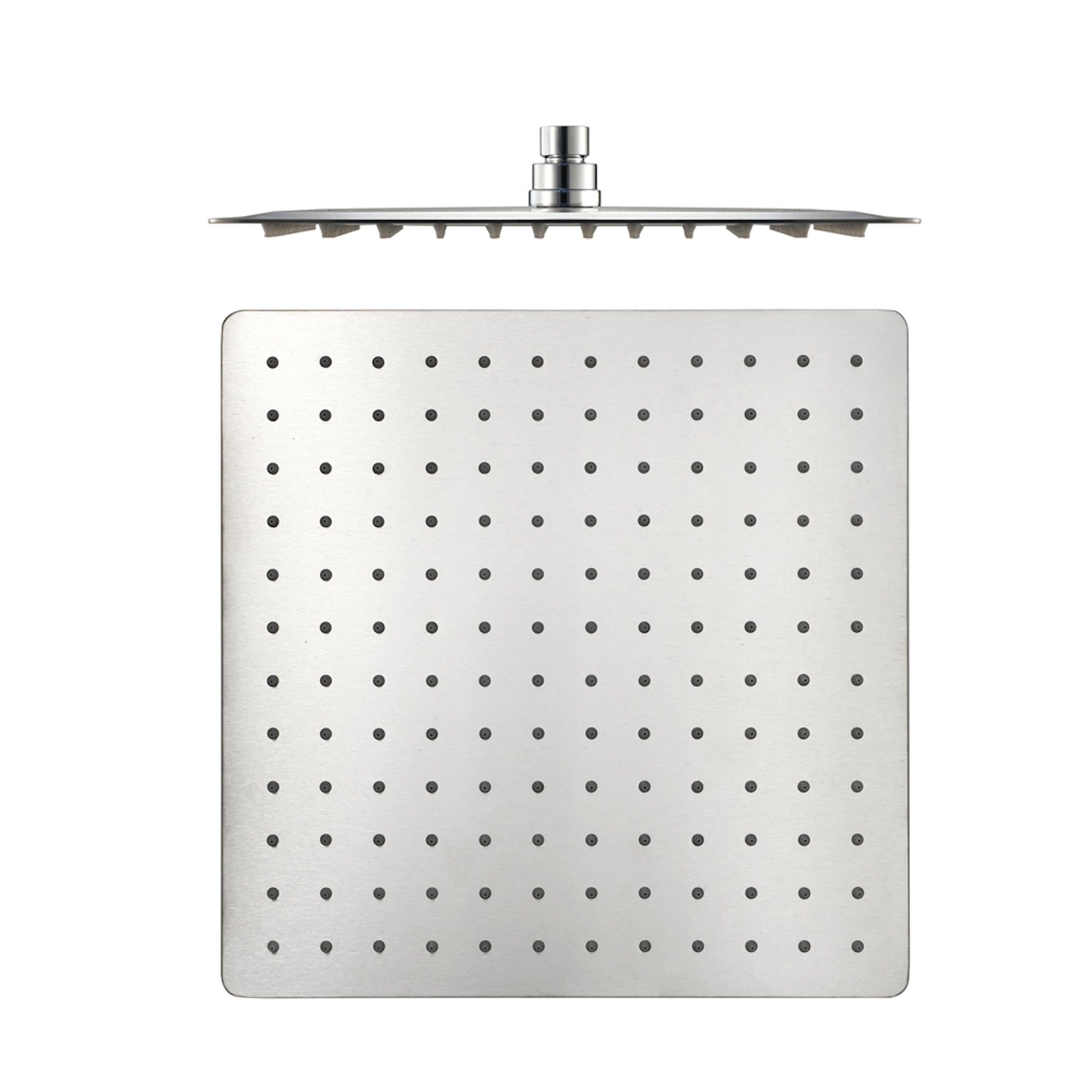

SHOWER HEAD & ARM

• Connection size - 1/2"
• Shower head size - 300 x 300mm

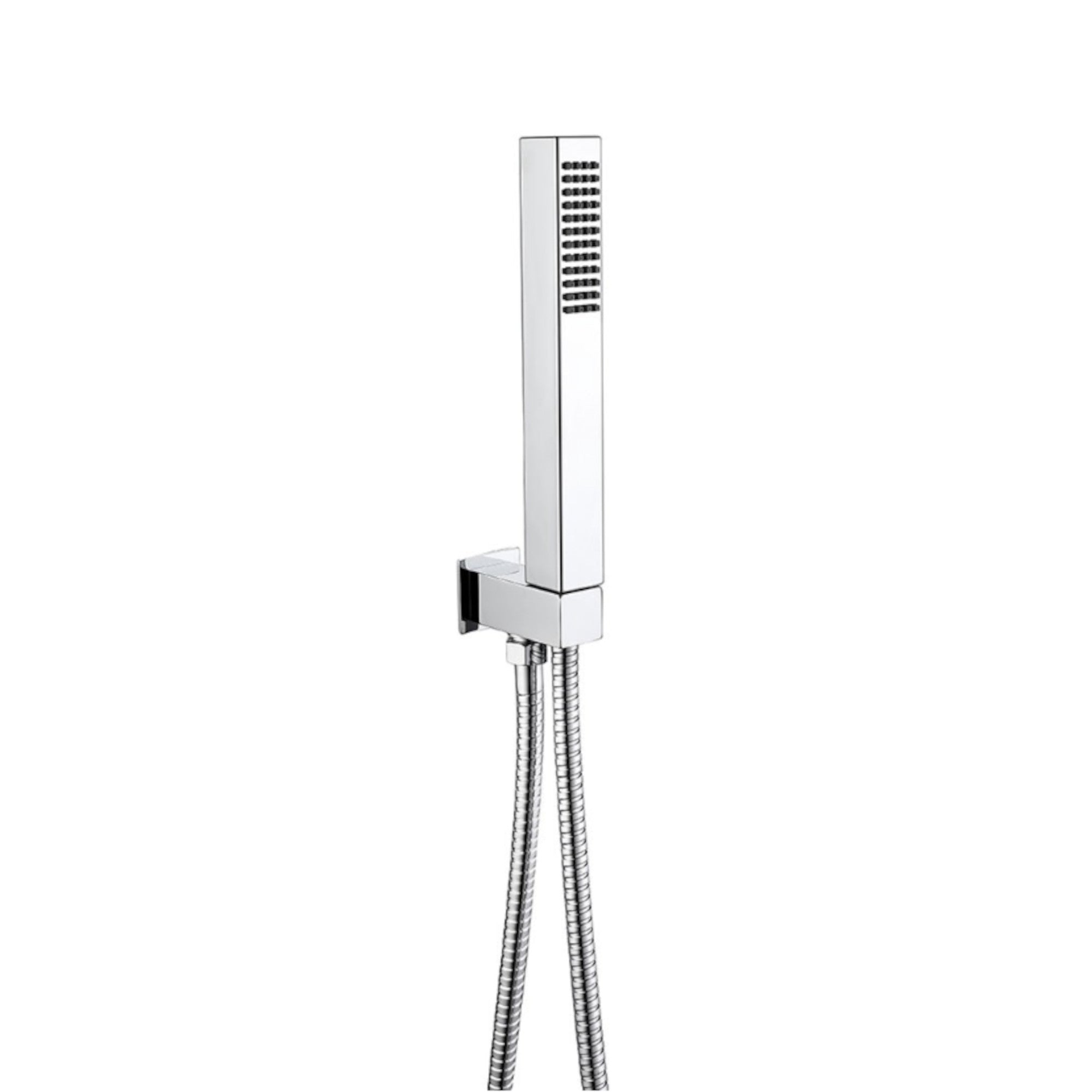

HANDSET KIT

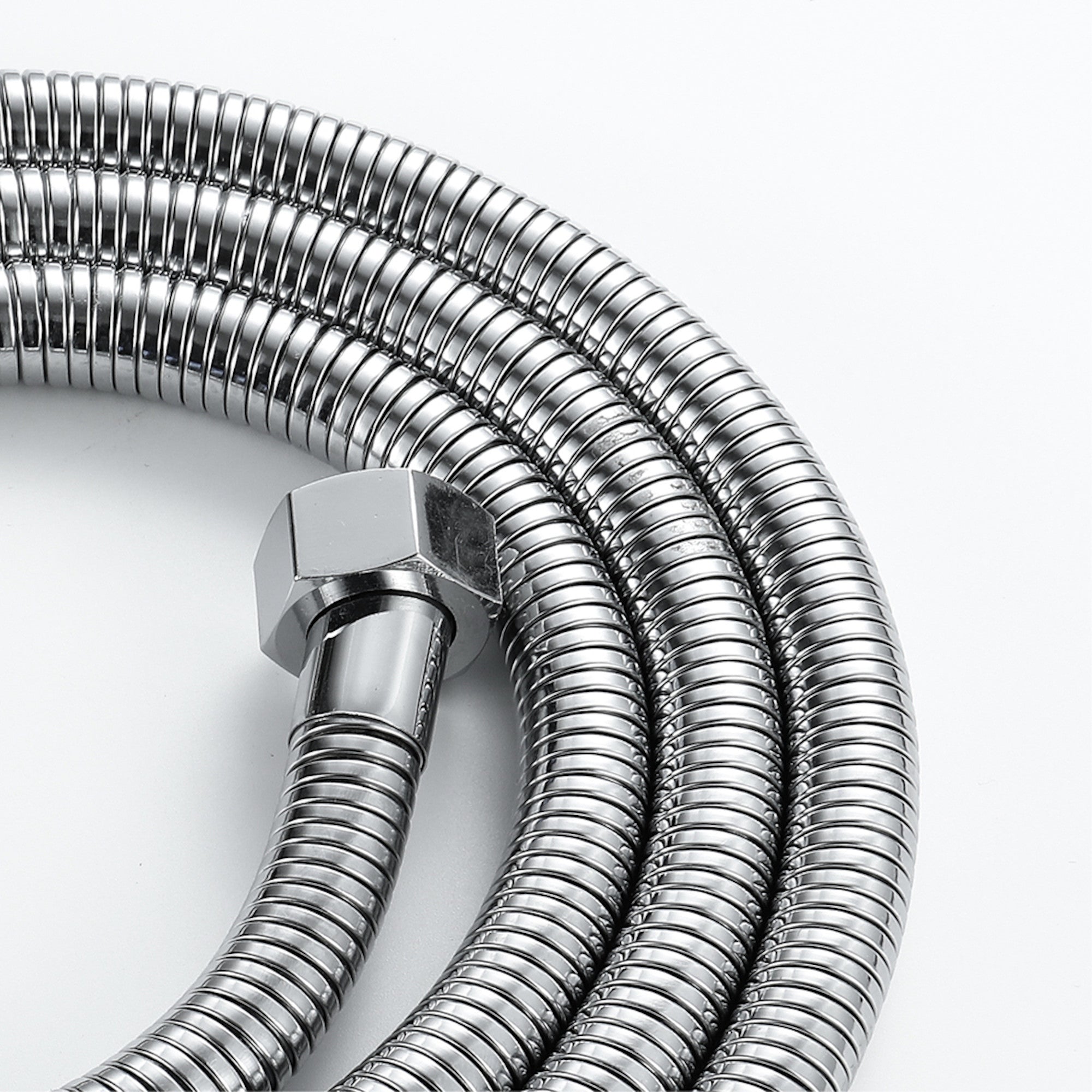

• Shower hose - 150cm

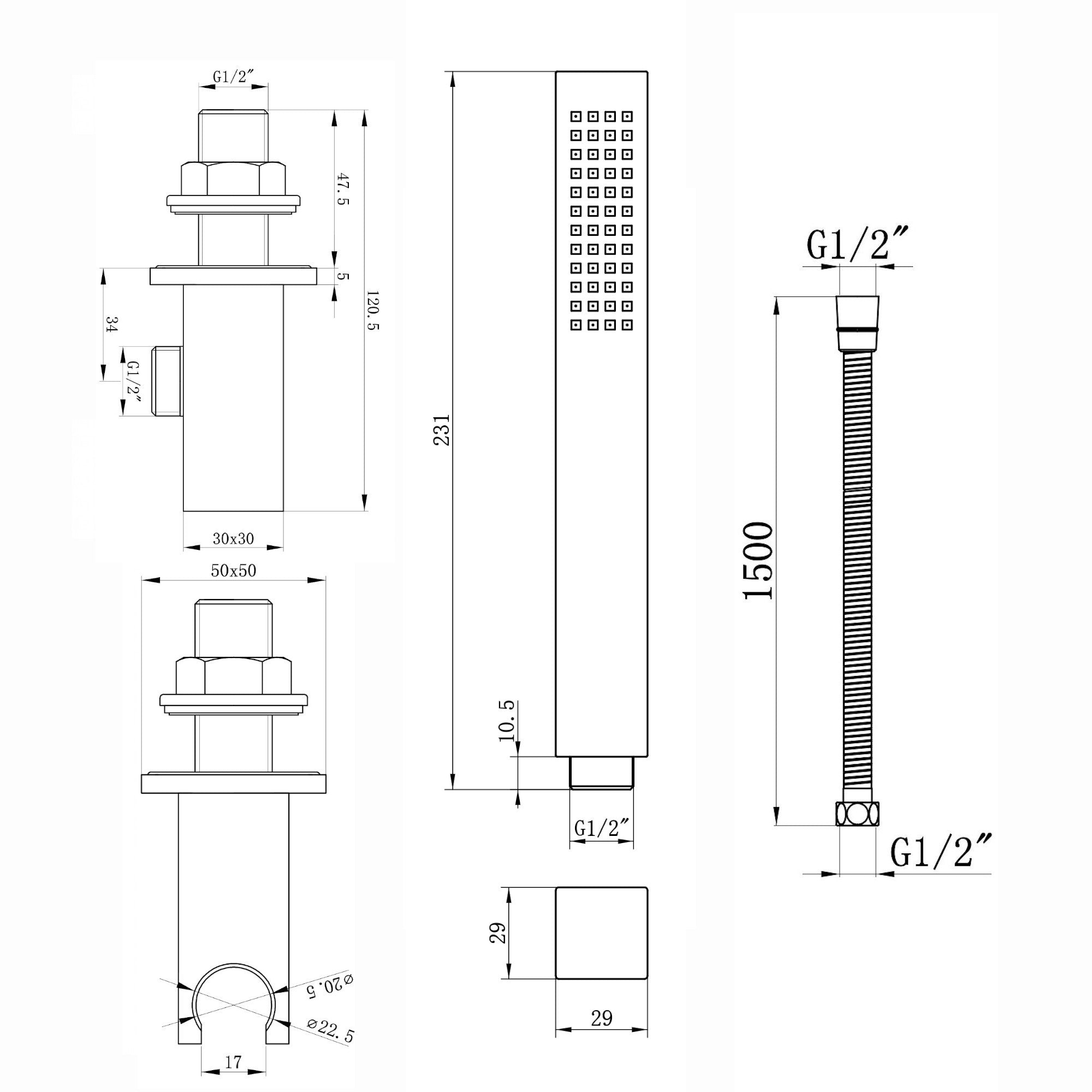

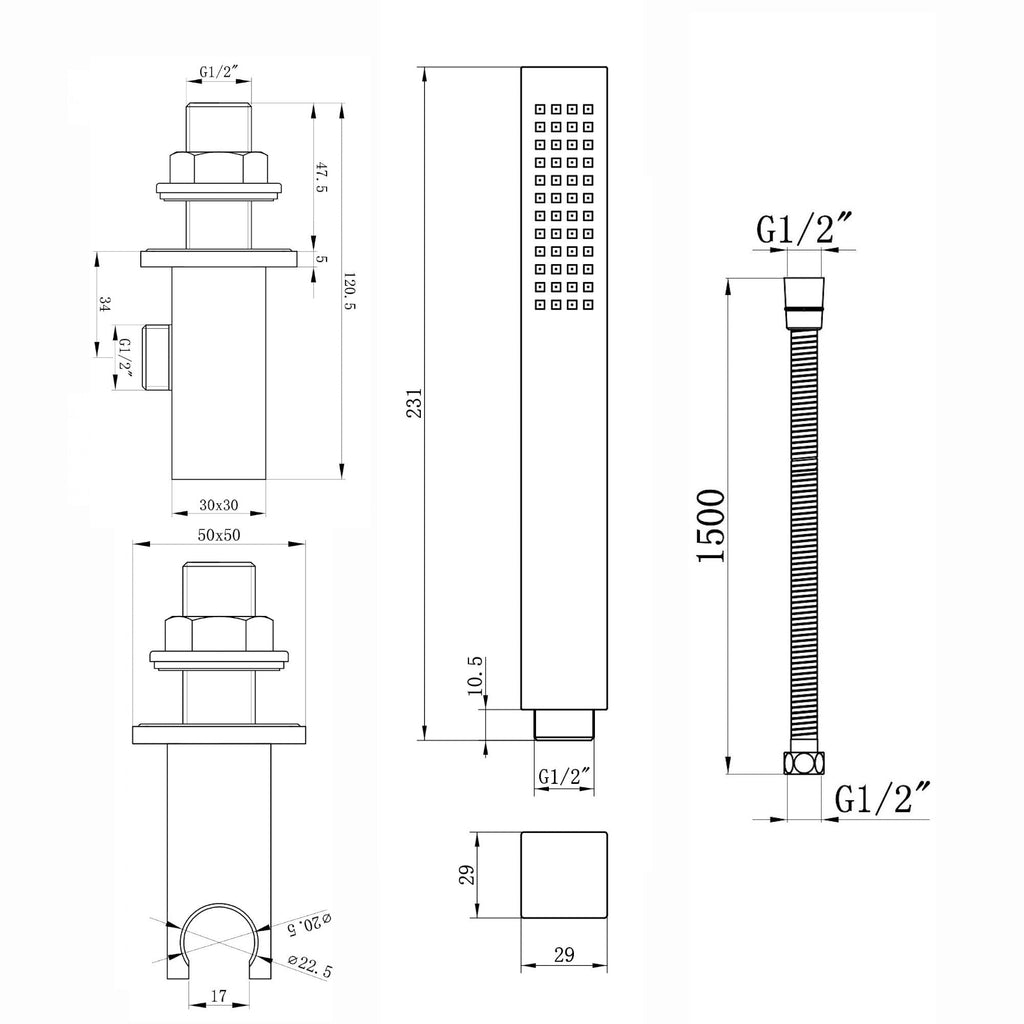

• For more dimensions please see technical drawings

WORKING REQUIREMENTS

Suitable for all plumbing systems. Minimum water pressure required - 0.5 bar, though we recommend min. of 1.0 bar for best performance. Please note: shower valve will not work efficiently on a gravity fed tank system, unless a negative or universal pump is installed. Positive pumps will not work.

FLOW RATES

0.5 bar - 6 L/M
1.0 bar - 11 L/M
2.0 bar - 16.2 L/M
3.0 bar - 20 L/M
4.0 bar - 23 L/M
5.0 bar - 25.8 L/M

WHAT'S IN THE BOX?

• Thermostatic shower mixer valve x 1
• Shower head and arm x 1
• Handheld shower, hose, wall outlet with bracket x 1
